Mr16 Led Dimmable

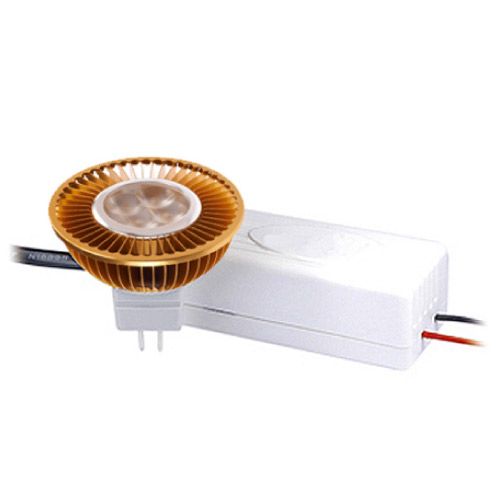

Dimmable MR16 V4 7W CREE

Smooth Dimming 100% to 0%
  • Compatible with your original lighting system
  • All while maintaining the original lifespan of the LED chip
  • Single dimmer for multiple MR16 LEDs
  • Easy to install: Replacement of the existing 12V transformer
  • Smooth dimming function fades from 100% to 0% light output without flicker
  • High quality LED chips from the world's top 5 chip manufactuers guarantee optimal luminance efficacy
Inquiry Back
PREV NEXT
  • Description
Power Consumption 7W
CCT (Typical) 6500K(Cool White)/ 4100K(Natural White / 3100K(Warm White)
CRI 80
Beam Angle 25°/ 45° 38°/ 72°  25°/ 120° (As below)
Chipset Luminous Flux 400~520 lm (Cool White)/ 400~520 lm (Natural White)/ 250~420 lm (Warm White) (As below)
Operating Temperature -20°C~40°C
Base GU5.3/ GU10/ E26/ E27/ E11/ E14/ E17/ B22D
Certification CE, FCC, UL, TUV, C-Tick, RoHS

LUMILEDS Chipsets

- Beam Angle: 25°/ 45°
- Luminous Flux
  Cool White: 520 lm
  Natural White: 520 lm
  Warm White: 420 lm

- Beam Angle: 38°/ 72°
- Luminous Flux
  Cool White: 400 lm
  Natural White: 400 lm
  Warm White: 250 lm

CREE Chipsets:

- Beam Angle: 25°/ 120°
- Luminous Flux
  Cool White: 520 lm
  Nature White: 455 lm
  Warm White: 420 lm
